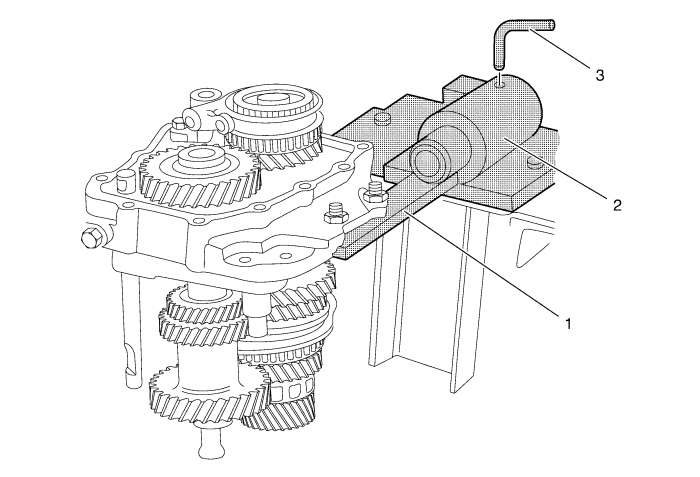

1

DT-552 Fixture

Caution: Refer to Fastener Caution in the Preface section.

Tip
Shift the transmission into reverse gear.

2

DT-113-2-A Holding Fixture

Tip
Ensure the DT-113-2-A fixture is mounted to a bench that is properly supported and will support the weight of the transmission assembly without tipping.

3

Lock Pin

Warning: Lock pin must be secured into the bench fixture to hold the transmission and prevent bodily injury.
