Service Information

Cruze

Input Shaft Disassemble

Table 1:	Input Shaft Bearing Retainer Bolt Removal
Table 2:	Input Shaft Cluster Gear Removal
Table 3:	Input Shaft Bearing Removal

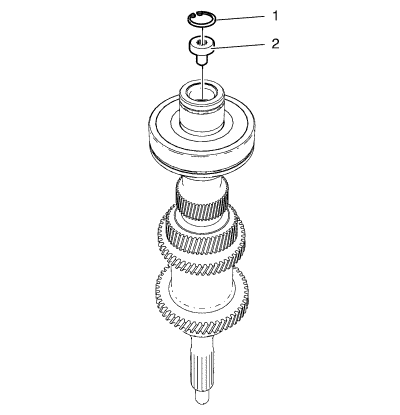

Callout	Component Name
1	Input Shaft Bolt Retaining Ring
2	Input Shaft Bearing Retainer Bolt

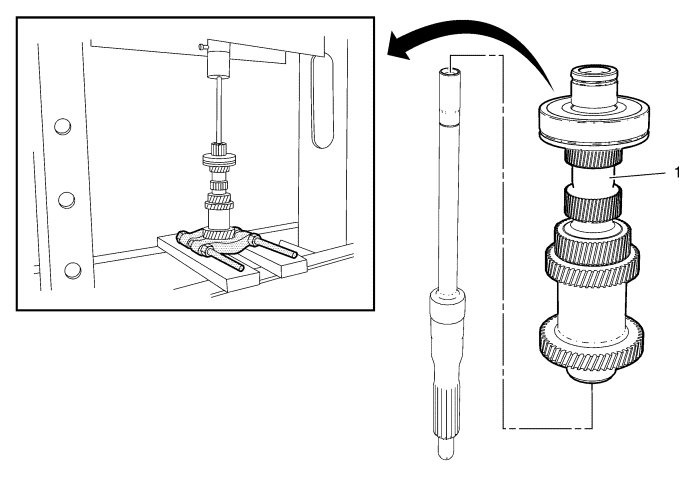

Callout	Component Name
1	Input Shaft Cluster Gear Tip Hydraulic press required. Special Tools DT-22912-B Universal Bearing Puller

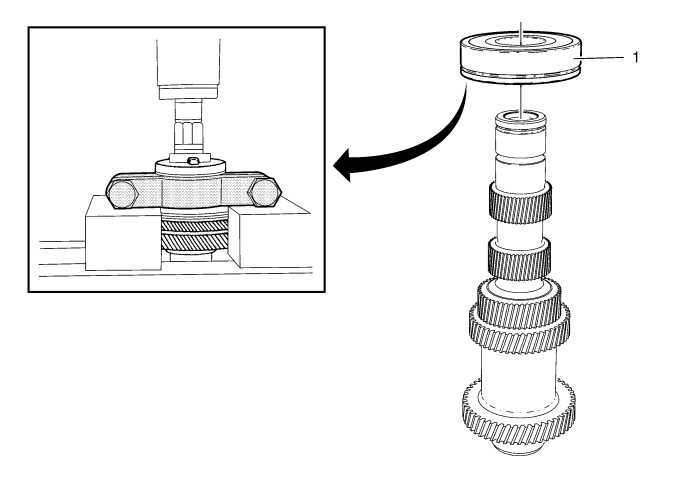

Callout	Component Name
1	Input Shaft Bearing Tip Hydraulic press required. Special Tools DT-22912-B Universal Bearing Puller
