Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

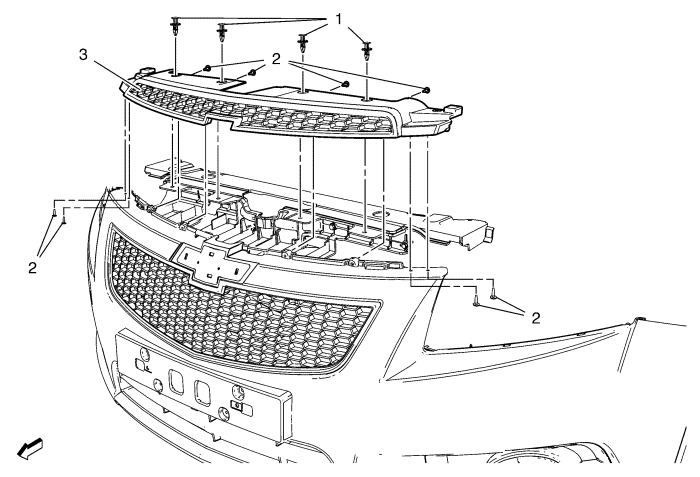

1

Radiator Upper Grille Clip (Qty: 4)

2

Radiator Upper Grille Screw (Qty: 8)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
2.5 N·m (22 lb in)

3

Radiator Upper Grille
