Cruze

Inflatable Restraint Steering Wheel Module Coil Centring

Caution: The new SIR coil assembly will be centred. Improper alignment of the SIR coil assembly may damage the unit, causing an inflatable restraint malfunction.

1. Verify the following conditions before centring the supplemental inflatable restraint (SIR) steering wheel module coil:

•	The wheels on the vehicle are straight ahead.

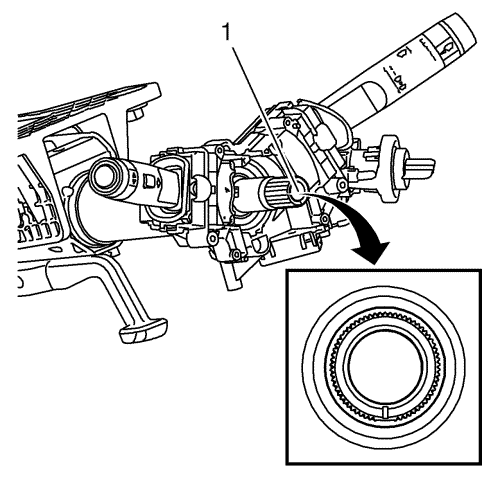

•	The centring mark (1) of the steering shaft is in the 6 o'clock position.

2. Turn the lobe of the clock spring clockwise until the coil ribbon stops. Do not force.
3. Turn the lobe of the clock spring counterclockwise approximately 3 turns to the Neutral position.

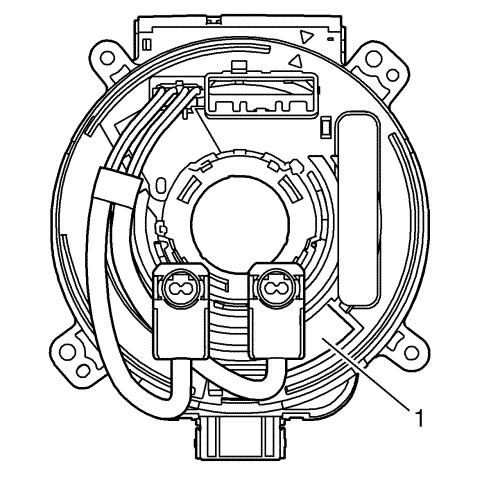

4. Properly align until the centring window turns yellow (1). This indicates the CENTRE position.
