Cruze |
||||||||
|
|
|
|||||||
Diagnosis consists of a function check on the automatic belt tensioner and a visual check on the belt and the components linked to the belt.

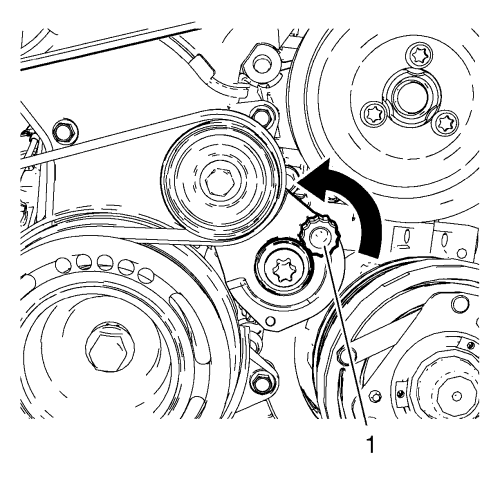

| • | Apply tension to the belt tensioner via the cast projection (1) in the direction of the arrow, counterclockwise, and allow to slide back slowly. |
| • | The tensioner must slide back to the initial position. |
