Preliminary Procedure

Remove rear wheelhouse panel liner. Refer to Rear Wheelhouse Panel Liner Replacement .

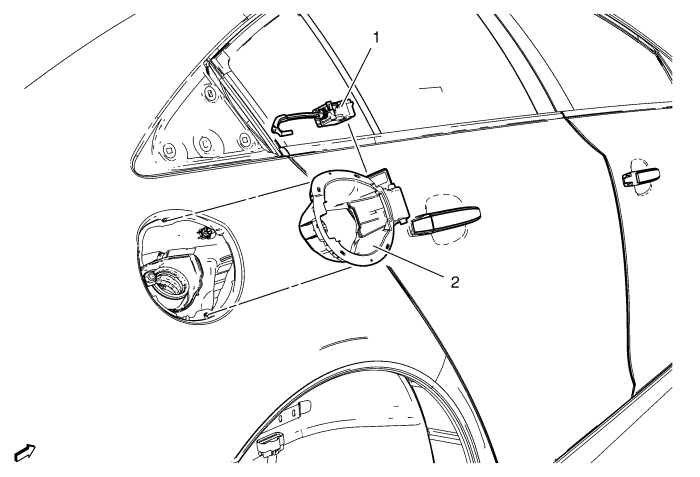

1

Fuel Tank Filler Door Lock Actuator

Procedure

Disconnect electrical connector.

2

Fuel Tank Filler Pipe Housing

Procedure

Unclip 4 clips and remove.

Tip
Push fuel tank filler door lock actuator locking rod in closed position.
