Service Information

Cruze

Engine Coolant Inlet Pipe Replacement - 2.0L Diesel LLW

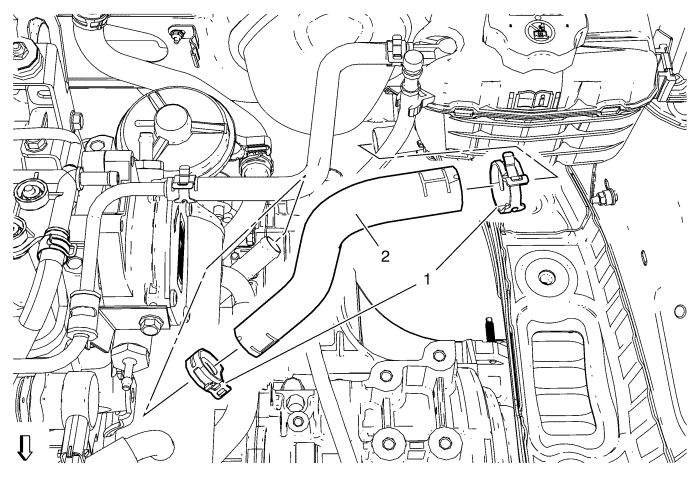

Callout	Component Name
Preliminary Procedure Drain and fill the cooling system. Refer to Cooling System Draining and Filling .
1	Engine Coolant Inlet Pipe Clamp (Qty: 2)
2	Engine Coolant Inlet Pipe

Callout

Component Name

Drain and fill the cooling system. Refer to Cooling System Draining and Filling .

Engine Coolant Inlet Pipe Clamp (Qty: 2)

Engine Coolant Inlet Pipe
