Air Conditioning Module Wiring Harness Replacement — Left Hand Drive

Callout	Component Name
Preliminary Procedures Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .

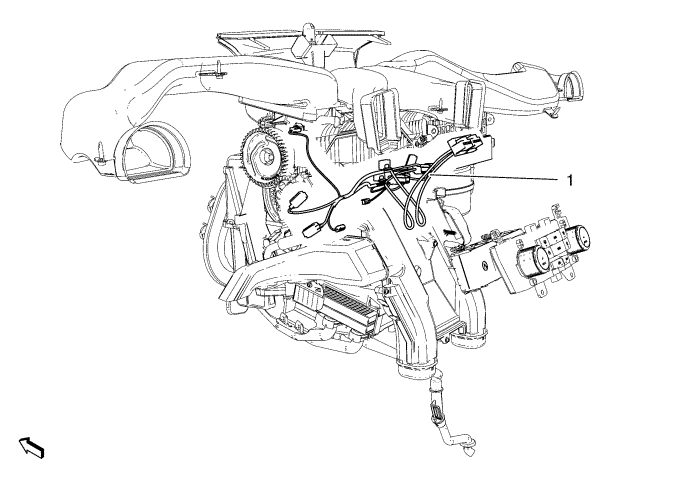

1	Air Conditioning Module Wiring Harness Procedure Disconnect the electrical connector. Tip The graphic shows the heater and air conditioning evaporator case without attaching parts for better clarity.

Callout

Component Name

Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .

Air Conditioning Module Wiring Harness

Disconnect the electrical connector.

Tip
The graphic shows the heater and air conditioning evaporator case without attaching parts for better clarity.
