Engine Coolant Fan Replacement - 2.0L Diesel LLW

Removal Procedure
  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove front bumper fascia. Refer to Front Bumper Fascia Replacement .
  3. Remove radiator grille support. Refer to Radiator Support Replacement .

    4. 2028268
  4. Remove wiring harness engine cooling fan.
    5. • Disconnect engine cooling fan wiring harness connectors (2).
    • Remove engine coolant fan wiring harness relay block (1).
    • Disconnect air conditioning refrigerant pressure sensor wiring harness connector (3).

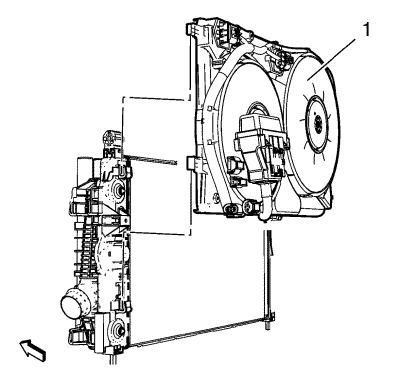

    2028276
  5. Remove engine coolant fan (1).
  6. Remove wiring harness engine cooling fan.

Installation Procedure
  1. Install wiring harness engine cooling fan.

    2. 2028276
  2. Install engine coolant fan (1).

    3. 2028268
  3. Install wiring harness engine cooling fan.
    4. • Connect air conditioning refrigerant pressure sensor wiring harness connector (3).
    • Install engine coolant fan wiring harness relay block (1).
    • Connect engine cooling fan wiring harness connectors (2).
  4. Install radiator grille support. Refer to Radiator Support Replacement .
  5. Install front bumper fascia. Refer to Front Bumper Fascia Replacement .
  6. Connect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
