Cruze

Engine Flywheel Installation - LDE, LED, LFJ, LXV, 2H0, LUW

Special Tools

For equivalent regional tools, refer to Special Tools .

1. Clean the thread in the crankshaft.

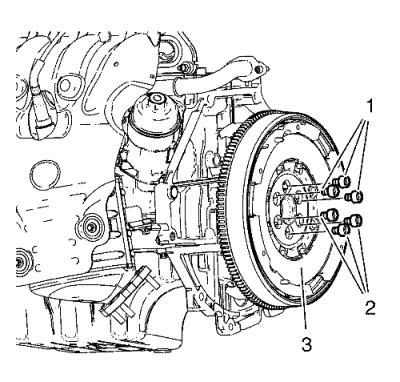

2. Install the flywheel (2).
3. Install the EN-652 holder (1).

Caution: Refer to Fastener Caution in the Preface section.

Caution: Refer to Torque-to-Yield Fastener Caution in the Preface section.




4. Install the 6 NEW flywheel bolts (1, 2) and tighten the bolts in 3 passes using the EN-45059 sensor kit :

4.1.	First pass to 35 N·m (26 lb ft)

4.2.	Second pass to additional 30°.

4.3.	Third pass to an additional 15°.

5. Remove the EN-652 holder.
