Warning: Refer to Exhaust Service Warning in the Preface section.

Warning: Refer to Protective Goggles and Glove Warning in the Preface section.

Preliminary Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Detach the exhaust system from the Underbody.

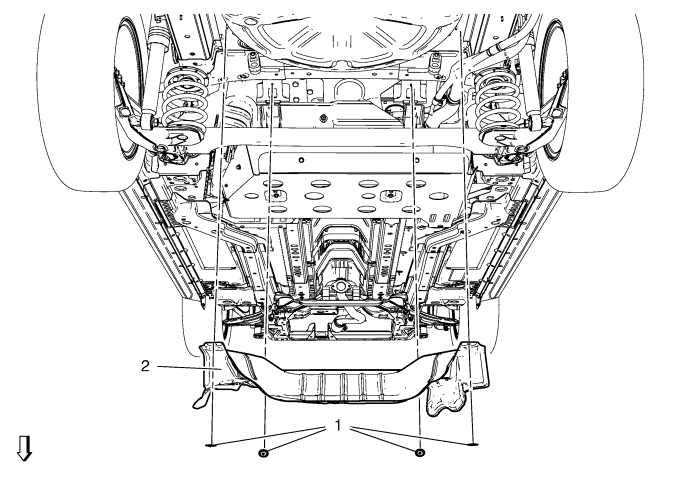

1

Heat Shield Retainer (Qty: 4)

2

Exhaust Rear Muffler Heat Shield
