Service Information

Cruze

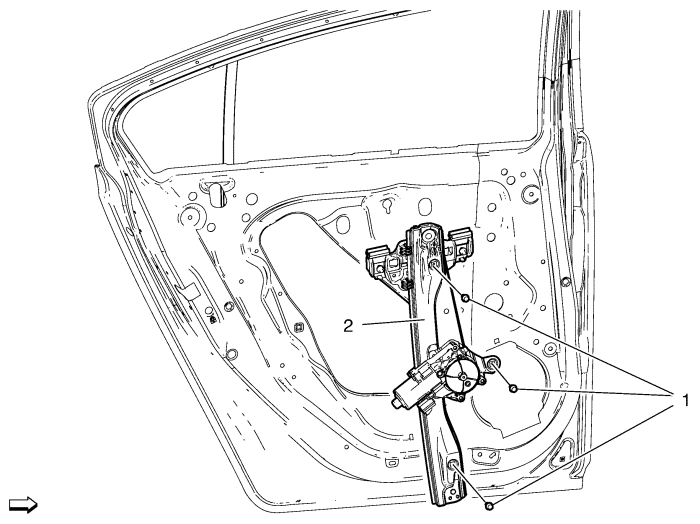

Rear Side Door Window Regulator Replacement

Callout	Component Name
Preliminary Procedures Remove the rear side door window. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Window Regulator Screw (Qty: 3) Caution: Refer to Fastener Caution in the Preface section. Tighten 9 N·m (80 lb in)
2	Rear Side Door Window Regulator Assembly Procedure Remove all components as needed.

Callout

Component Name

Remove the rear side door window. Refer to Rear Side Door Window Replacement .

Rear Side Door Window Regulator Screw (Qty: 3)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
9 N·m (80 lb in)

Rear Side Door Window Regulator Assembly

Remove all components as needed.
