Preliminary Procedure

1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
2. Remove the radiator support bracket. Refer to Radiator Support Bracket Replacement
3. Remove the radiator grille reinforcement support. Refer to Radiator Grille Reinforcement Support Replacement
4. Remove the bonnet primary and secondary catches. Refer to Bonnet Primary and Secondary Catch Replacement

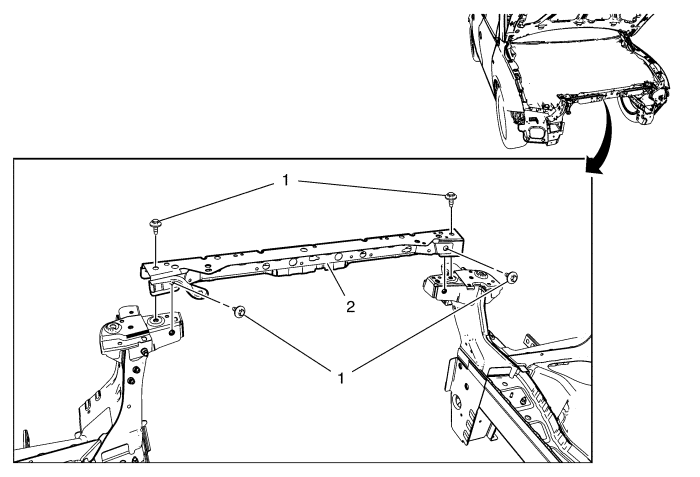

1

Headlamp and Front Bumper Fascia Mount Panel Bolt (Qty: 4)

Caution : Refer to Fastener Caution in the Preface section.

Tighten
 22 N·m (17 lb ft)

2

Front End Upper Tie Bar
