Drum Brake Adjusting Hardware Inspection

Warning: Refer to Brake Dust Warning in the Preface section.

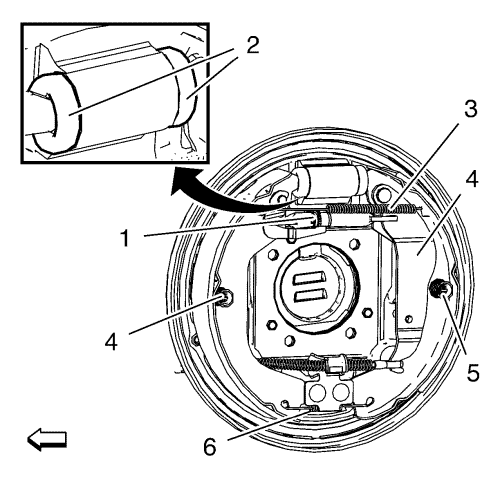

1. Visually inspect the adjuster actuator spring (3) for the following conditions:

•	The spring being bent, or broken at any point along the spring

•	Excessive corrosion

•

Missing

2. Visually inspect the adjuster assembly (1) for the following conditions:

•	The adjuster being bent, or broken

•	Excessively worn, damaged, or missing teeth

3. Visually inspect the adjuster actuator lever for the following conditions:

•	The lever being bent, or broken

•	The lever to adjuster surface being excessively worn

•	Broken spring attachment tab

•

Missing

4. If any of the conditions listed were found, the affected part, or parts require replacement. Refer to Drum Brake Hardware Replacement .
