Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

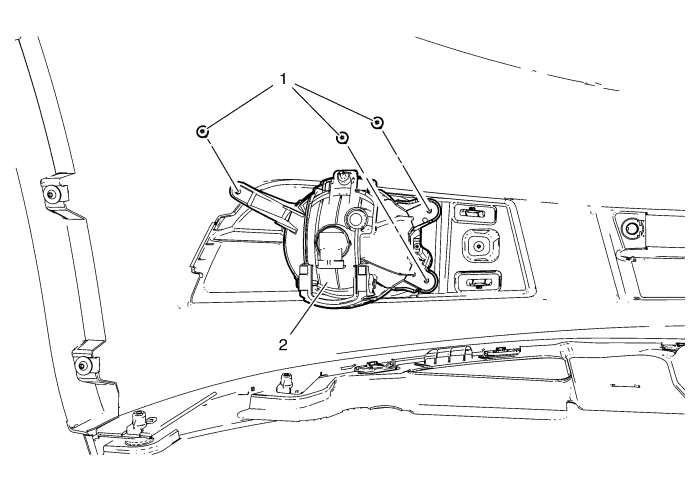

1

Front Fog Lamp Screws (Qty: 3)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
2.5 N·m (22 lb in)

2

Front Fog Lamp Assembly

Procedure

Aim the fog lamp after installation. Refer to Fog Lamp Aligning .
