Preliminary Procedure

1. Remove front side door trim panel. Refer to Front Side Door Trim Replacement
2. Remove the front side door water deflector. Refer to Front Side Door Water Deflector Replacement

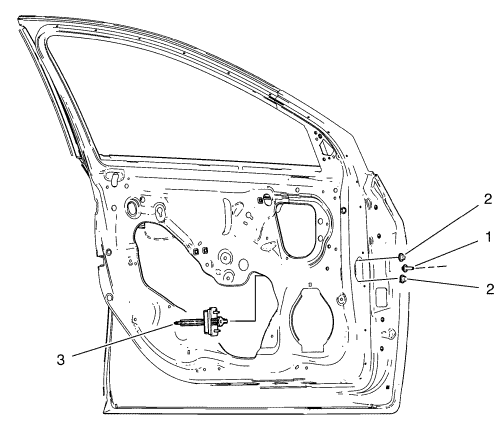

1

Front Side Door Check Link Bolt

Caution : Refer to Fastener Caution in the Preface section.

Tip
Place the door in the full open position.

Tighten
25 N·m (18 lb ft)

2

Front Side Door Check Link Nut

Procedure

Remove the water deflector.

Tighten
9 N·m (79 lb in)

3

Front Side Door Check
