Rear Side Door Upper Hinge and Lower Hinge Replacement

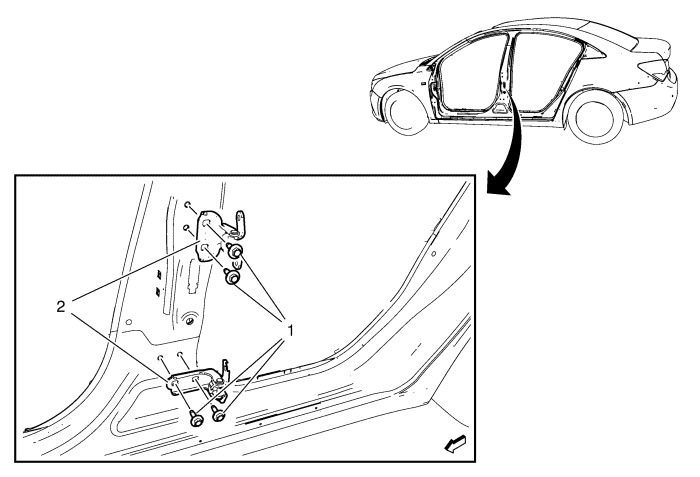

Callout	Component Name
Preliminary Procedure Remove the rear side door. Refer to Rear Side Door Replacement .
1	Rear Side Door Hinge Bolt (Qty: 4) Caution : Refer to Fastener Caution in the Preface section. Tighten 25 N·m (19 lb ft)
2	Rear Side Door Hinge Procedure Adjust rear side door as needed. Refer to Rear Side Door Adjustment .

Callout

Component Name

Remove the rear side door. Refer to Rear Side Door Replacement .

Rear Side Door Hinge Bolt (Qty: 4)

Caution : Refer to Fastener Caution in the Preface section.

Tighten
25 N·m (19 lb ft)

Rear Side Door Hinge

Adjust rear side door as needed. Refer to Rear Side Door Adjustment .
