Preliminary Procedure

1. Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
2. Remove the front wing insulator. Refer to Front Wing Insulator Replacement .
3. Remove the front side door. Refer to Front Side Door Replacement .

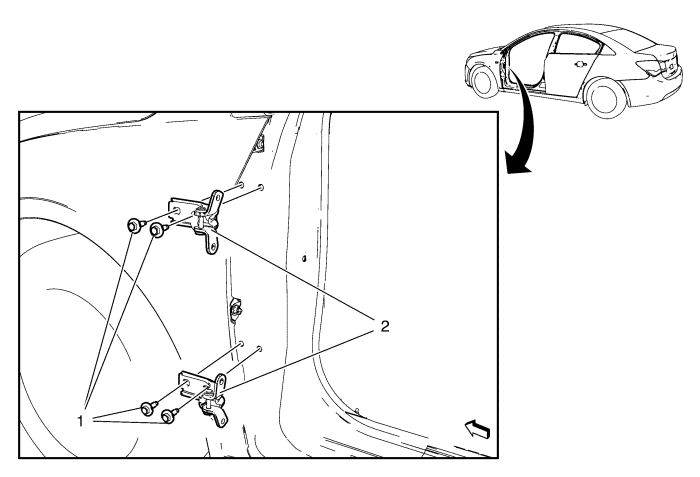

1

Front Side Door Hinge Bolt (Qty: 4)

Caution : Refer to Fastener Caution in the Preface section.

Tighten
25 N·m (19 lb ft)

2

Front Side Door Hinge

Procedure

Adjust front side door as needed. Refer to Front Side Door Adjustment .
