Inside Air Temperature Sensor Replacement — Left Hand Drive

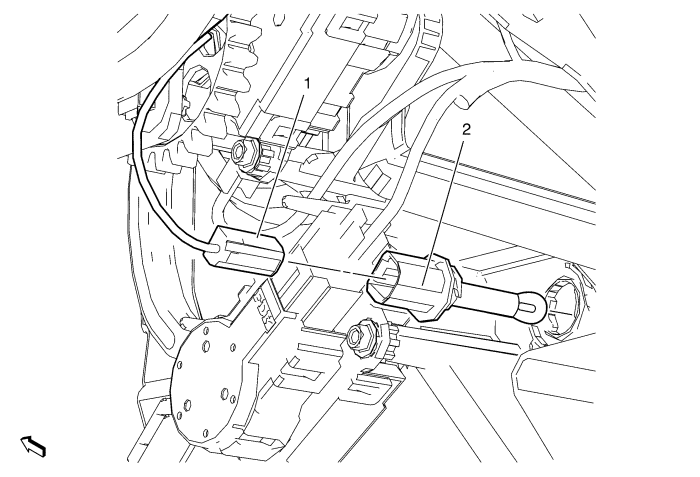

2027699

Callout

Component Name

Preliminary Procedures

Remove the floor air outlet duct - left side. Refer to Floor Air Outlet Duct Replacement - Left Side : Right Hand Drive → Left Hand Drive .

1

Inside Air Temperature Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Rotate the inside air temperature sensor to remove.
