Preliminary Procedures

1. Remove the instrument panel lower trim panel – left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
2. Remove the instrument panel lower trim panel - right side. Refer to Instrument Panel Lower Trim Panel Replacement - Right Side .
3. Remove gearbox control lever trim cover. Refer to Automatic or Manual Transmission Control Lever Trim Cover Replacement .

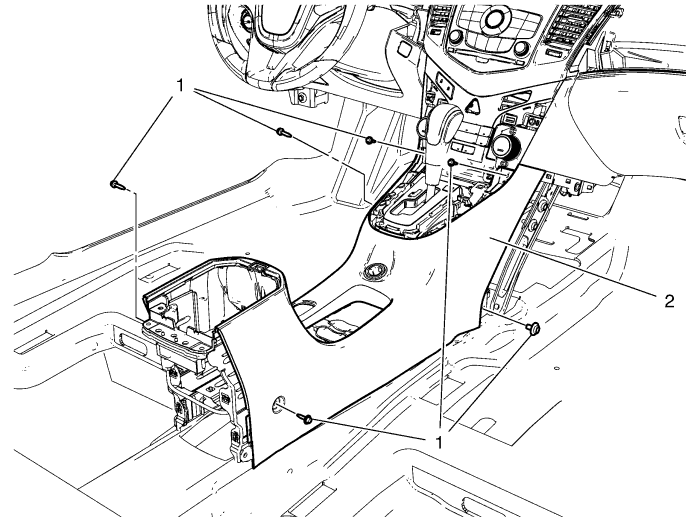

1

Front Floor Console Screw (Qty: 6)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
2.5 N·m (22 lb in)

2

Front Floor Console

Procedure

1. Disconnect electrical connectors.
2. Transfer parts as needed.
