Service Information

Cruze

Low and Reverse and 1-2-3-4 Clutch Housing Disassemble

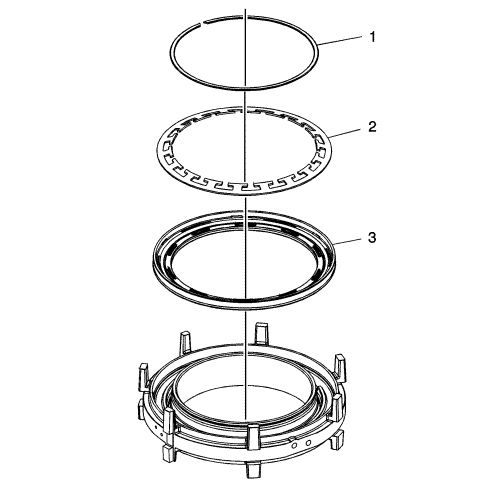

Table 1:	Low and Reverse Clutch Piston Removal
Table 2:	1-2-3-4 Clutch Piston Removal

Callout	Component Name
1	Low and Reverse Clutch Spring Retainer Special Tool GE-8059 Circlip Pliers - Parallel Jaw For equivalent regional tools, refer to Special Tools .
2	Low and Reverse Clutch Spring
3	Low and Reverse Clutch Piston

Callout

Component Name

Low and Reverse Clutch Spring Retainer

GE-8059 Circlip Pliers - Parallel Jaw

For equivalent regional tools, refer to Special Tools .

Low and Reverse Clutch Spring

Low and Reverse Clutch Piston

Callout	Component Name
1	1-2-3-4 Clutch Spring Retainer Special Tool GE-8059 Circlip Pliers - Parallel Jaw For equivalent regional tools, refer to Special Tools .
2	1-2-3-4 Clutch Spring
3	1-2-3-4 Clutch Piston

Callout

Component Name

1-2-3-4 Clutch Spring Retainer

GE-8059 Circlip Pliers - Parallel Jaw

For equivalent regional tools, refer to Special Tools .

1-2-3-4 Clutch Spring

1-2-3-4 Clutch Piston
