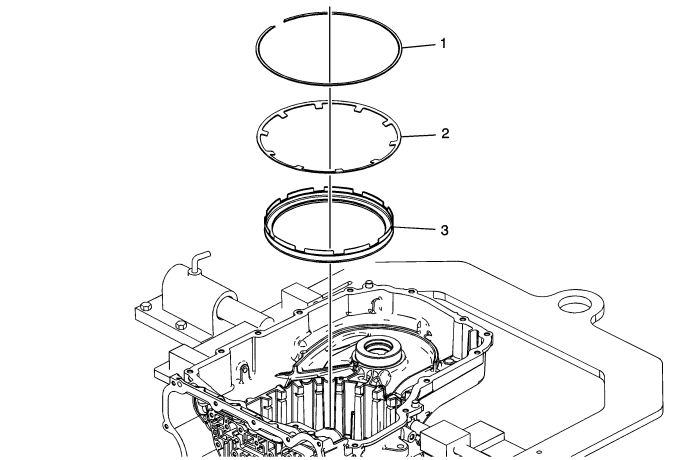

2-6 Clutch Piston Removal


1891319

Callout

Component Name

1

2-6 Clutch Spring Retainer

Special Tool

DT-28585 Snap Ring Remover or equivalent

For equivalent regional tools, refer to Special Tools .

2

2-6 Clutch Spring

3

2-6 Clutch Piston Assembly

Tip

    • Use pliers to remove the piston.
    • Inspect the piston seals for damage and/or wear. The piston is reusable.
