3-5-Reverse and 4-5-6 Clutch Housing, and Input, Reaction, and Output Carrier Installation

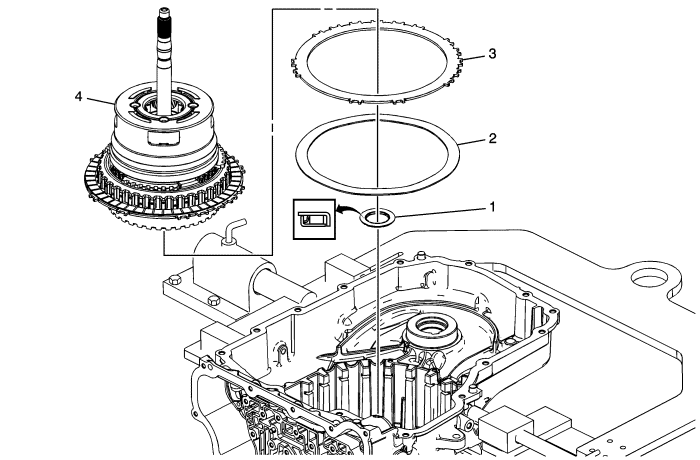

Callout

Component Name

3-5 Reverse and 4-5-6 Clutch Housing Thrust Bearing

2-6 Clutch Apply Plate (Waved)

2-6 Clutch Plate (Qty: 1)

Tip

•	Only install one 2-6 Clutch Plate. The remaining clutch plate is installed with the gearset assembly.

•	Align the large flat areas with the valve body end of the case and the 2 tabs on the clutch plate that are close to each other with the slots at the bottom right corner of the case.

3-5 Reverse and 4-5-6 Clutch Housing Assembly and Gearset

Tip
Align the large flat areas of the 2-6 Clutch Plate with the valve body end of the case and the 2 tabs on the clutch plate that are close to each other with the slots at the bottom right corner of the case.
