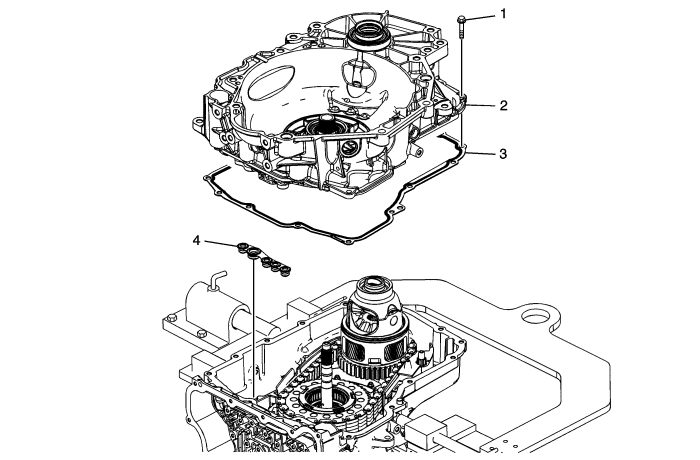

Torque Converter Housing with Fluid Pump Assembly Removal


1891311

Callout

Component Name

1

Torque Converter and Differential Housing Bolts M8 x 30 (Qty: 15)

2

Torque Converter with Fluid Pump Housing Assembly

3

Torque Converter Housing Gasket

Tip
Discard the seal. It is not reusable.

4

Fluid Pump Seal Assembly

Tip
Discard the seal. It is not reusable.
