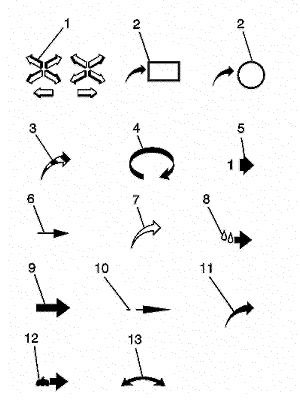

This service manual uses various symbols in order to describe different service operations.
| (1) | Front of Vehicle |
| (2) | View Detail |
| (2) | View Detail |
| (3) | Ambient Air Mixed with Another Gas or Indicate Temperature Change |
| (4) | Motion or Direction |
| (5) | View Angle |
| (6) | Dimension (1:2) |
| (7) | Ambient/Clean Air Flow or Cool Air Flow |
| (8) | Lubrication Point -- Oil or Fluid |
| (9) | Task Related |
| (10) | Sectioning (1:3) |
| (11) | Gas Other Than Ambient Air or Hot Air Flow |
| (12) | Lubrication Point -- Grease or Jelly |
| (13) | Multidirectional Arrow |
