SECTION 9Q

BODY & ACCESSORIES (ROOF)

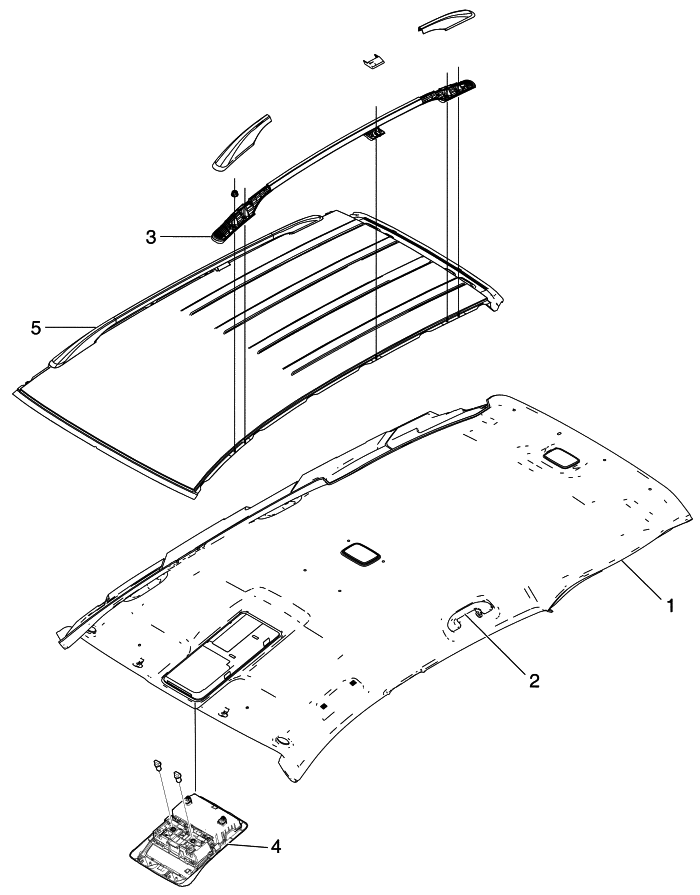

C179Q01A

Display graphic

Translations of text in graphics

ROOF - HEADLINING & ROOF PANEL (971)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	HEADLINING ASSEMBLY - REPLACE	9710100	1.9	1.9
2	HANDLE, ASSIST - REPLACE	.	.	.
	Right Front	9710200	0.2	0.2
	Left Front	9710300	0.2	0.2
	Right Rear	9710400	0.2	0.2
	Left Rear	9710500	0.2	0.2
3	ROOF, RACK (ONE OR TWO) - REPLACE	9711500	0.4	0.4
4	HOLDER A SUNGLASS - REPLACE	9712400	0.2	0.2
5	ROOF PANEL – REPLACE	9712500	9.0	9.0

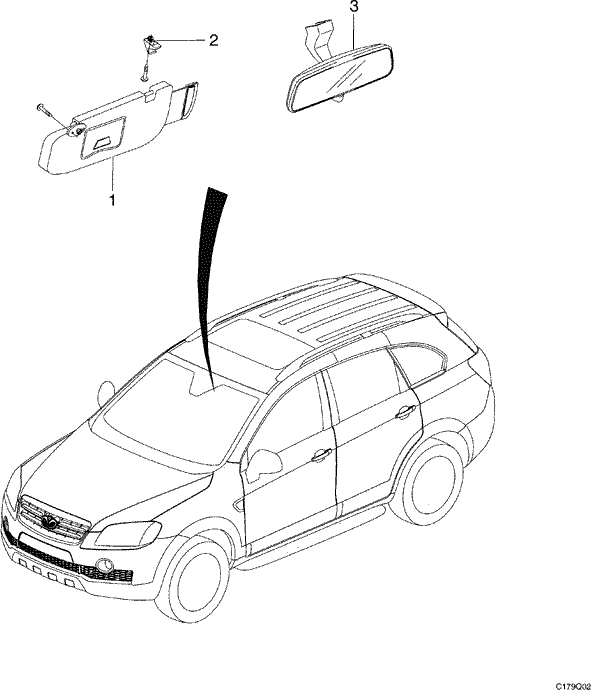

C179Q02

Display graphic

Translations of text in graphics

ROOF - SUNSHADE & INSIDE MIRROR (972A)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	MIRROR, VISOR VANITY - REPLACE	9720100	0.2	0.2
2	SUNSHADE - REPLACE	.	.	.
	Right	9720300	0.2	0.2
	Left	9720400	0.2	0.2
3	MIRROR, INSIDE REAR VIEW - REPLACE	9720600	0.3	0.3

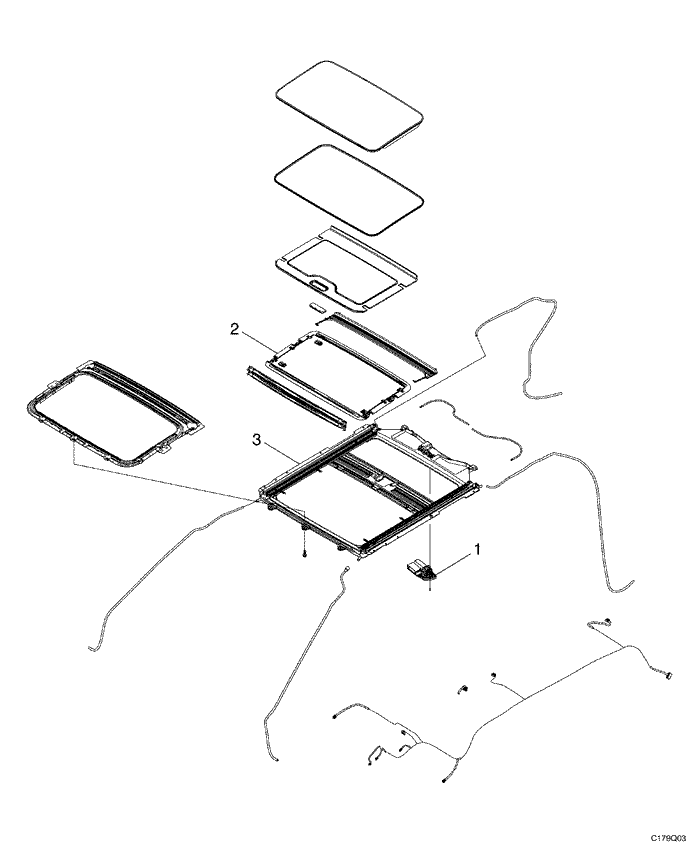

C179Q03

Display graphic

Translations of text in graphics

ROOF - SUN ROOF (972B)

NO.	OPERATION DESCRIPTION	OPERATION CODE	MODEL
NO.	OPERATION DESCRIPTION	OPERATION CODE	C100	C105
1	MOTOR, SUN ROOF - REPLACE	9725100	2.0	2.0
2	GLASS, SUN ROOF - REPLACE	9725200	0.4	0.4
3	FRAME, SUN ROOF ASSY - REPLACE	9725400	2.2	2.2
